Touch screen Universal Input Datalogger

Products

Touch screen Universal Input Datalogger

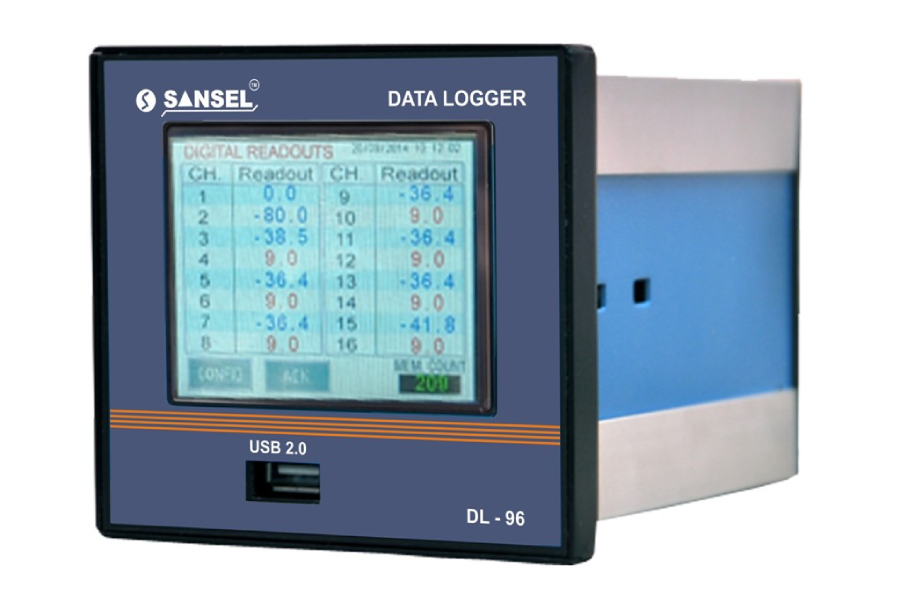

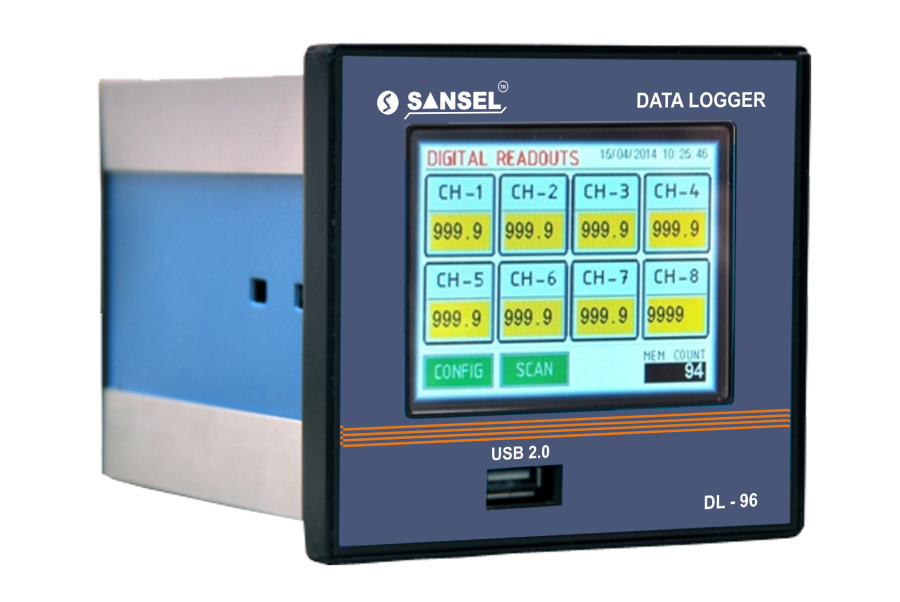

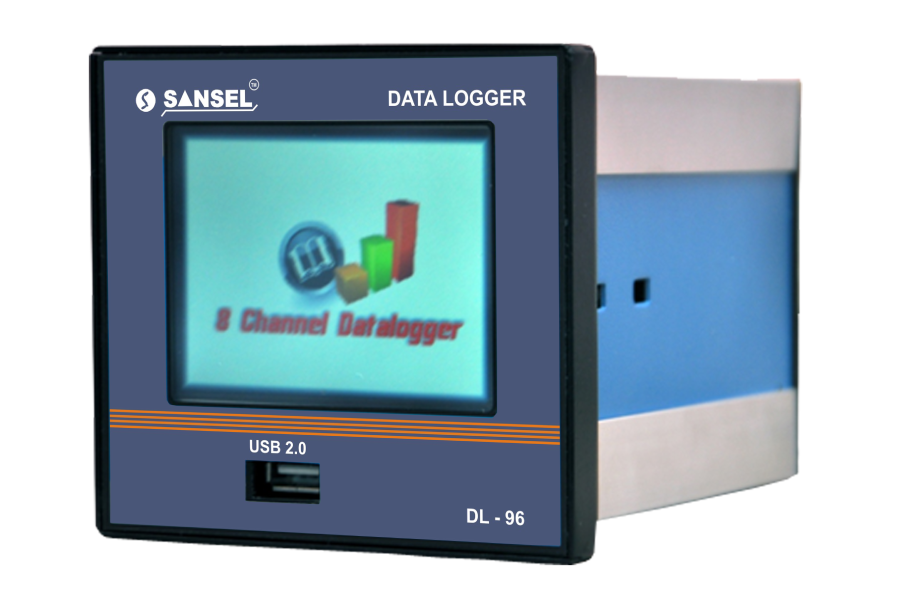

Model No: DL 96

DL Series 8/16/24/32/Channel universal touch screen Data Logger accept input RTD, Thermocouple, Voltage, Current. The logger suitable for temperature, Pressure, humidity, Level flow, RPM, voltage, Current, etc.,. The input is passed through suitable filters to eliminate unwanted signals. This is a high performance series equipped to handle virtually any process documentation in mechanical and system engineering. Cold junction compensation is standard feature in Thermocouple input.

DL series Universal Touch screen data logger provides memory approximately 25,000 records, communication port for PC interfacing and user friendly customized software package.

DL series Universal Touch screen data logger provides memory approximately 25,000 records, communication port for PC interfacing and user friendly customized software package.

The DL series Universal Touch screen data logger is multi colour TFT display, USB 2.0 for pen drive data transfer, compact size, priced very competitive. The unit can be drawn from the front for easy servicing. Product quality certified.

Features

  • Multi color TFT display.
  • Each touch screen to configure & copy the datas.
  • 8, 16, 24, 32 channel inputs with fixed & universal inputs.
  • Analog inputs like Thermocouples, RTD, mA, mV, V.
  • Internal memory for datas upto 25,000 records.
  • USB 2.0 for pen drive data transfer.
  • Parallel port provided for direct printout the storage datas.
  • PC Interface through RS 485 or RS 232 or USB or Ethernet (TCP/IP).
  • Common alarm output with H/L settings for all channel
  • Easy mounting, compact size and rugged.
  • Supply 230V AC.

Technical Specifications

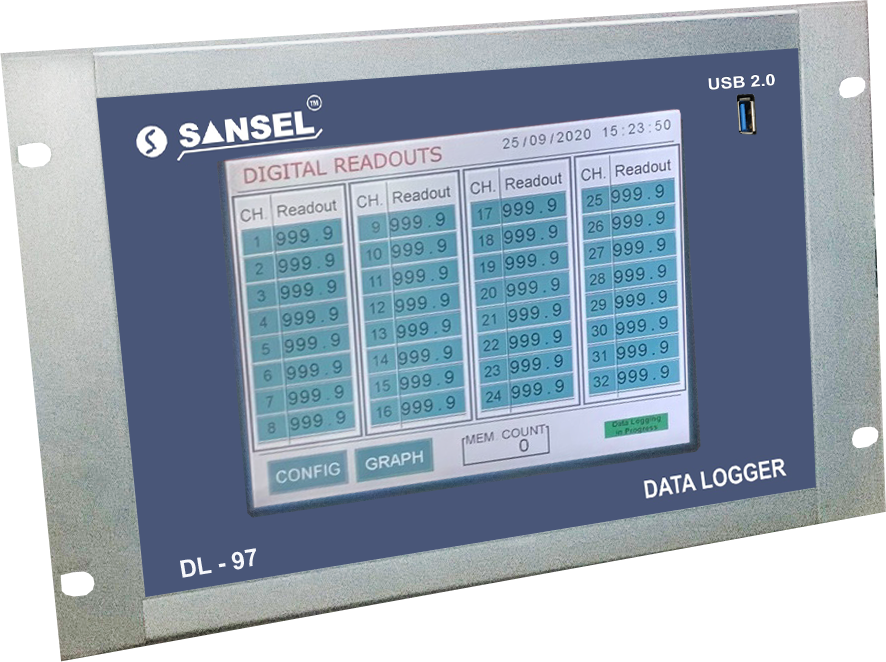

  • Model : DL 96 / 97
  • Display : 3.5 inch multi colour TFT display
  • No.of channel : 8 or 16 or 24 or 32 channel
  • Accuracy : ± 0.15% of FS
  • Password access : Provided for all configuration settings
  • Analog & Temp Inputs (selectable for universal model) : RTD-PT 100, TC-J, K, R, S, mA, mV, Volt
  • Input range :
    RTD-PT-100: -99.9 to 300.0°C (-199.9 to 300.0 optional)
    0-20 mA: -999 to 4000 (1999 to 9999 optional)
    4-20 mA: -999 to 4000
    0-1 Vdc: -999 to 4000
    0-5 Vdc:-999 to 4000
    TC-J:0-700°C
    TC-K:0-1200°C
    TC-S:0-1600°C
    TC-R:0-1600°C
  • Input :
    Fixed/Universal
    (T/Cs [K,J,R,S,N] / RTDs [Pt100] /
    Current [0/4-20mA] / Voltage [0/1-5VDC])
  • No Of Input : 8/16 Nos
  • No Of Alarm : 1/2 Nos
  • Alarm Output (optional against order) : 1 or 2 common relay (5 A rated)
  • Alarm set point : High & Low Set point for each channel(user selectable)
  • Log interual : 1 sec to 24 hours (selectable)

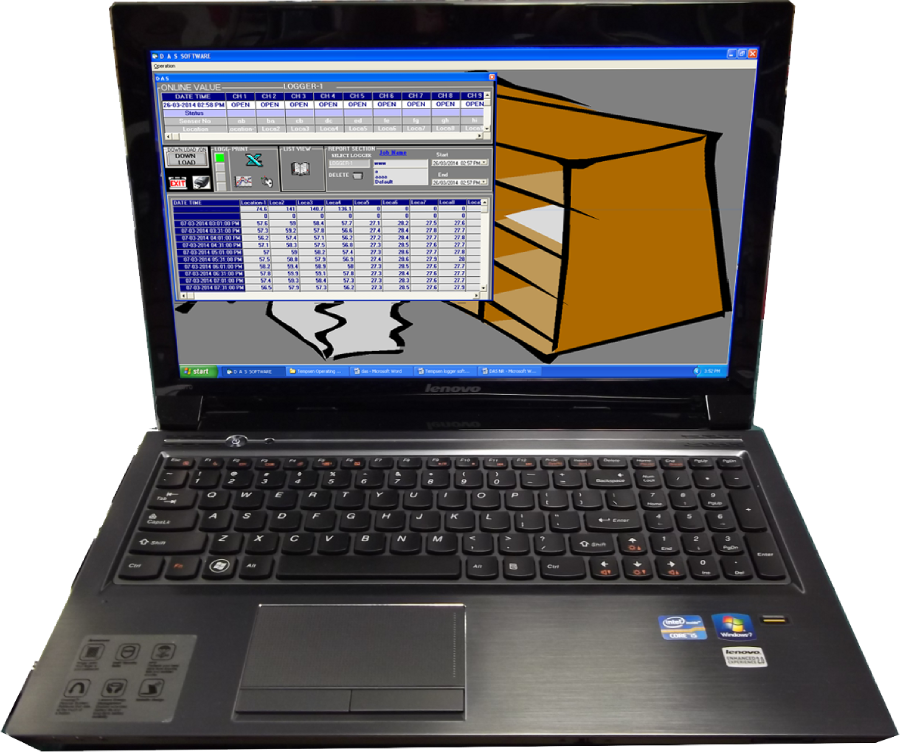

  • PC software : Provided with logging, Alarm Setup, Record, Graph
  • PC Communication : RS 232 or RS 485 or USB or Ethernet (TCP/IP)
  • Printer port : Parallel printer port provided
  • Work Ambience : Temperature (-10 to +60°C), Humidity ≤90%RH
  • USB connection : USB 2.0 for pen drive data transfer
  • Baud Rate : 9600 bps
  • Temperature drift : ≤0.01% FS/°C (typical 50 ppm)
  • Electromagnetic compatibility : IEC61000-4-4, ±4KV / 5KHz; IEC61000-4-5, 4KV
  • Isolation withstanding voltage : Between power, relay contact and signal terminals ≥ 230VDC;
    Between isolated electroweak signal terminals ≥ 600VDC
  • Response time : ≤1.5 seconds if digital filter parameter is set as 0 or 1
  • Automatic pilot time interval : Approx. 1.2s or 2s configurable
  • Power Consumption : ≤6W
  • Enclosure : Aluminum case
  • Mounting : Panel mounting
  • Operating environment : 0 to 50°C / 20 to 95% RH non condensing
  • Operating Voltage : 230 VAC ±10/50 Hz
  • Weight (Approx.) : 1 kg
